ORBIT Ring Landscape Light
A contemporary ring-shaped post-top luminaire engineered for comfortable, efficient lighting across residential and public landscapes.
Best forResidential streets · Parks · Pedestrian paths
Configurable project specificationConfiguration highlights
Designed around
real project needs.
- 01
The distinctive open-ring head creates a refined daytime silhouette while the concealed downward-facing LED module supports low-glare pedestrian and landscape lighting.
- 02
Interchangeable Type II, Type III and Type V optics support pathways, residential streets, plazas and open landscape areas.
- 03
LED packages delivering up to 150 lm/W are available from 30W to 80W, with colour temperatures from warm 2700K to daylight 6500K.
- 04
A die-cast aluminium head, powder-coated finish and sealed optical compartment are specified for IP66 and IK08 outdoor protection configurations.
- 05
Optional 0–10V or DALI control enables scheduled dimming and integration with project-level lighting management systems.
- 06
Project configurations can be specified with reference to IEC 60598-2-3 for road and street luminaires, IEC 60529 for enclosure protection, IEC 62262 for impact protection and CIE 115 for road and pedestrian lighting design. Model-specific test reports remain subject to confirmation.
Technical overview
Built for predictable
field performance.
LED Power30W–80W
EfficacyUp to 150 lm/W
Input100–277V AC
CCT2700K–6500K
CRI>70 / >80
OpticsType II / III / V
Controls0–10V / DALI optional
Surge10kV
ProtectionIP66 / IK08
Mounting height4–8 m
Warranty5 years
Indicative configuration range. Final specifications, test reports, warranty and compliance documents are confirmed for the selected model before order.
Project resources
Documents matched to the selected model.
Datasheets, IES files, installation instructions and available test reports vary by configuration. Tell us the target wattage, optics and market so we can send the correct document set.
Request documents →Related systems
All products → 01 View product ↗
02 View product ↗ L7 Series · Landscape Lighting

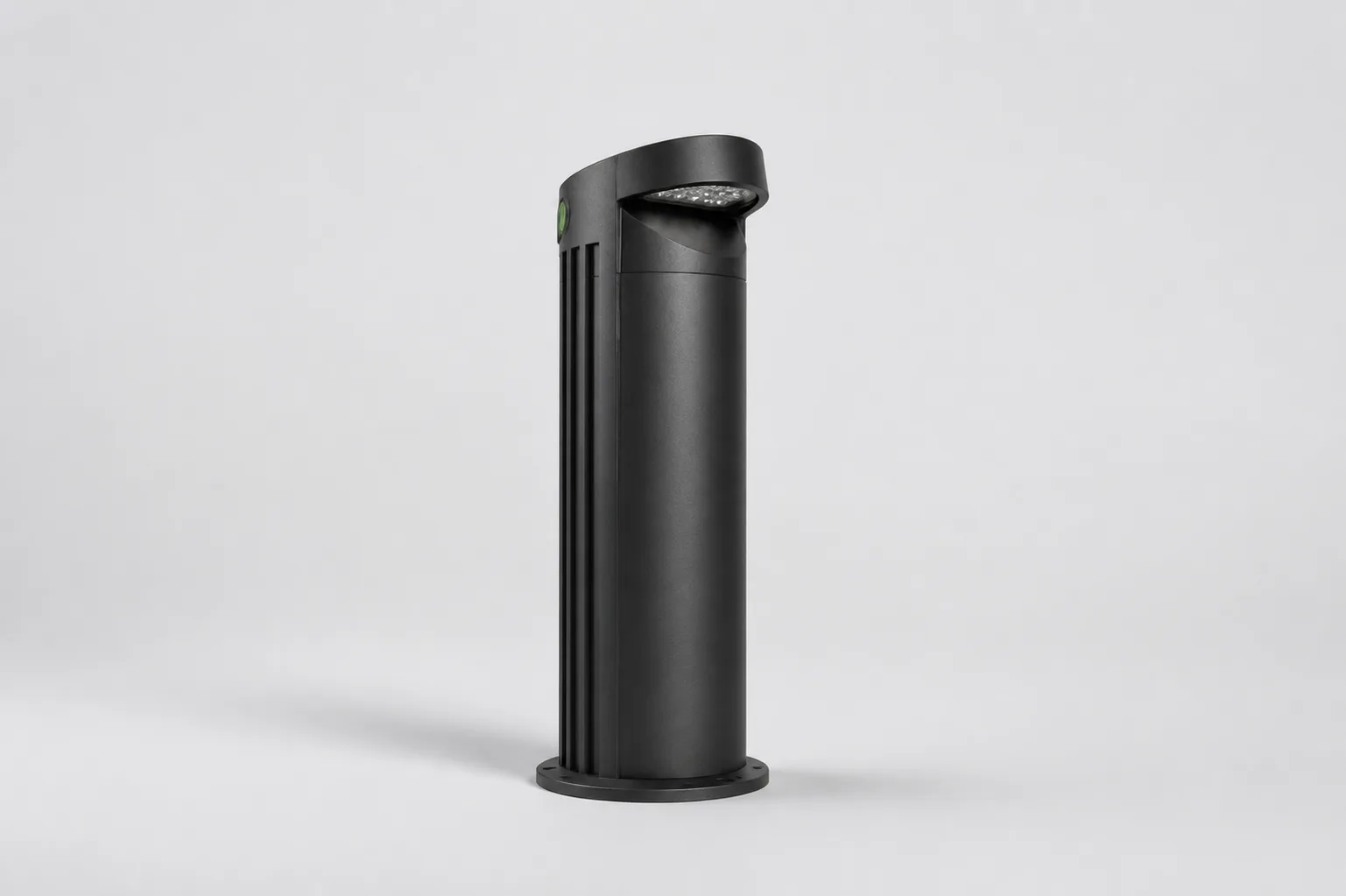

TERRA Architectural Bollard
